Geology of the Jemez Area, Chapter 8: The Tschicoma Formation

The table of contents may be found here.

Jemez panorama

Panorama of the Jemez Mountains as seen from the southeast. 35 52.975N 106 03.660W

Following the eruption of the Bearhead Rhyolite, volcanism in the Jemez slowed to a crawl, with only sporadic small eruptions of dacite between 6.5 and 5 million years ago. Volcanism resumed around 5 million years ago, as large volumes of dacite began to to erupted in the Jemez volcanic field. These flows formed the high mountains of the Sierra de los Valles and extended as far west as the present western caldera rim.
  1. The Tschicoma Formation
    1. Flow banding
    2. More than meets the eye
  2. The Puye Formation
    1. Mud flows and lahars
  3. The El Rechuelos Rhyolite

The Tschicoma Formation

Digital relief map of Lobato Formation exposures in the
      Jemez Mountains
Relief map of the Jemez with Tshicoma Formation outcroppings highlighted in red (dacite) and green (andesite and basaltic andesite)

To the traveler approaching the Jemez from the east, the skyline is dominated by the Sierra de los Valles, a chain of mountains that forms the scenic backdrop for the city of Los Alamos. These extend from Sawyer Dome in the south to Caballo Mountain in the north. Across Santa Clara Canyon, the high terrain is known as the Tschicoma Highlands, and includes Tschicoma Mountain, Polvadera Peak, and Cerro Pelon, which appear to be aligned with the Sierra de los Valles. Tschicoma Mountain and Polvadera Peak are the highest and third highest peaks in the Jemez volcanic field.

All of this terrain is underlain by porphyritic dacite of the Tschicoma Formation. This rock is quite distinctive. It's described as porphyritic because it consists of a very fine-grained rock, called the ground mass, in which much larger individual crystals, called phenocrysts, are embedded. The ground mass of Tschicoma porphyritic dacite is typically pinkish tan in color, but can vary all the way from bluish-gray to brick red. The phenocrysts are plagioclase feldspar and are always white or off white. In a few outcrops, there are phenocrysts of quartz visible as well, and the rock is then described as a rhyodacite.  You can't mistake Tschicoma Formation samples for either Bandelier Tuff or Cerros del Rio basalt, the other two most common rocks in Los Alamos County.

The oldest Tschicoma Formation flows are nearly 7 million years old, but the eruption didn't really get going until about 5 million years ago. The eruptions were essentially over by 2.5 million years ago. The oldest substantial flows in the Los Alamos area are those of the Rendija Canyon Member of the Tschicoma Formation, which makes up most of the Sierra de los Valles west and northwest of Los Alamos. This was erupted in a relatively short period of time around 5 million years ago.

The early voluminous flows coincided with the shift of major displacement along the western margin of the Rio Grande Rift from the Cochiti Fault Zone to the Pajarito Fault Zone. The voluminous flows of the Tschicoma Formation likely erupted from fissures opened along faults now buried underneath the flows that were associated with this fault zone. The Pajarito Fault Zone forms part of the western boundary of a deep graben, the Velarde Graben, that reflects brittle rifting along a quite narrow zone within the broader Rio Grande Rift.

One of the best places to begin examining the Rendija Canyon Member is along the Mitchell Trail. One must take care not to be diverted onto a utility road that ultimately leads nowhere, and one must keep in mind that much of the lower part of the trail is badly washed out in the aftermath of recent forest fires. With those caveats, the trail is a wonderful hike.

Rendija Canyon

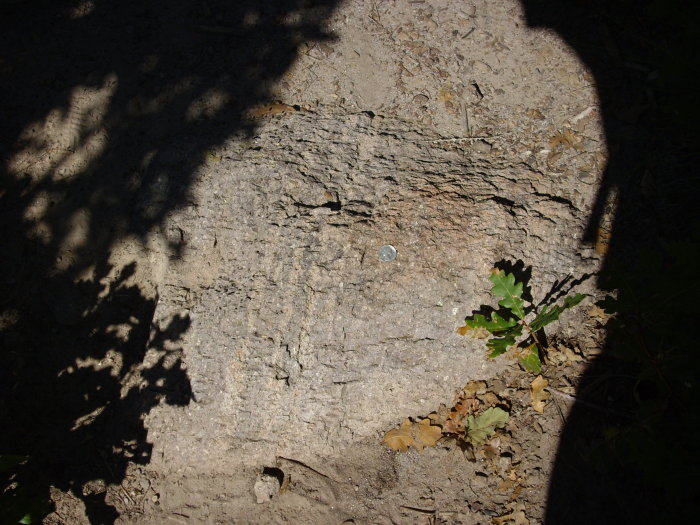

Poprphyritic rhyodacite boulder of the Rendija Canyon Member, showing flow banding and plagioclase phenocrysts. Quarter provides scale.

Dacite boulder

Daisy in a boulder.

Daisy in a boulder

A popular destination near the Mitchell Trail is the Guaje Ridge rock window.

Guaje window. 35 54.663N 106 20.051W

This is reached via a rather steep and rocky side trail best climbed with occasional three-point contact.

Looking southeast from the Guaje rock window towards the town site. The Arizona Street water tank is cut into a bank of welded rhyolite tuff of the Tshirege Member, Bandelier Formation, which pooled in a paleovalley in the Tshicoma Formation.

Water tank

Looking south from the rock window towards Pajarito Mountain (which just pokes above the nearer ridges)

Pajarito Mountain

Looking west from the rock window towards Rendija Mountain. Unless it's Quemazon Mountain. Both names are used locally; neither is recognized by the U.S. Geological Survey.


The entire terrain in the last two photographs is underlain by Tschicoma Formation.

Guaje Ridge is a massive dacite flow from a single eruptive center located to its west. This was possibly Quemazon Mountain, or it may have been a vent even further west that foundered into the caldera when Valles Caldera was formed by the same eruptions that produced the Bandelier Tuff. The ridge is now moderately eroded, and in some places has been cut by faults, but the remaining high relief reflects the high viscosity of the original silica-rich lava.

Dacite cliffs showing flow banding:

Surge beds

Guaje Canyon looking east towards Round Mesa in the far distance. Guaje Ridge is to the right.

Rendija Canyon
Upper Guaje Canyon. Looking east from 35 55.019N 106 20.366W

Looking down the trail again. The hill to the upper right may be a small dacite dome. For many years, it was known as "L.A. Mountain", because there was a white painted logo for Los Alamos High School on the east face of the dome. However, the dome is on public land, and increased enforcement of environmental regulations has kept the high school kids from repainting the logo for some decades. It is now all but invisible.


The next photograph shows a scoria outcrop near the top of Guaje Ridge. This is lava that cooled while it was still full of gas bubbles. Scoria is typically found near the surface of a lava flow, and its presence here, near the top of Guaje Ridge, helps establish that the ridge is in fact a large flow that has only partially eroded.


Dacite outcropping with possible flow banding.

Cross beds

Flow banding in rhyodacite outcropping.

Flow banding

Flow banding

I've mentioned flow banding several times now. Flow banding is the presence in a lava flow of thin layers of different composition or texture. The boulder at the start of this section showed what appears to be compositional differences between layers; the photograph above shows what appears to be more of a textural layering.

The causes of flow banding are debated by geologists. When I first read about the phenomenon, I assumed this was a manifestation of a more general phenomenon called shear banding, well-known in the field of continuum mechanics (in which I worked for some years.) Shear banding occurs when the deformation in a ductile material becomes localized into thin layers. This occurs because the deformed material loses strength, so that further deformation tends to occur in the regions that are already most deformed. I can imagine something similar happening in a viscous lava flow, where the presence of many phenocrysts could give the lava the right mechanical properties. For example, this outcrop of the Rendija Canyou Member in Cabra Canyon west of Guaje Mountain is likely the result of flow of very cool, nearly solidified magma.

Cabra Canyon
          flow-banded dacite
Rendija Canyon slot. 35.9204376N 106.2853387W

However, shear banding does not seem to be satisfactory explanation for all cases of flow banding. Some cases may simply be manifestations of incomplete mixing of different compositions of lava. If you have ever tried to mix pigment into  white paint, you have likely seen that the pigment initially forms thin layers in the paint, and considerable stirring is required to distribute the pigment throughout the paint. Something similar may occur in some lava flows of mixed composition.

Let's return to the Tschicoma Formation by examining a sample of the Rendija Canyon dacite.

Rendija Canyon Member,
        Tschicoma Formation

We see that the dacite consists of large light-colored phenocrysts of plagioclase in an aphanitic matrix. This is very typical of most flows of the Tschicoma Formation. There are also quartz grains, making this a rhyodacite.

The area around the Mitchell Trail shows mostly exposures of dacite close to the surface of the flow. The interior of the flow is exposed in a slot canyon just east of the Los Alamos cemetery at Guaje Pines. This is part of Rendija Canyon, which opens out and becomes quite substantial further to the east.

Slot canyon
Rendija Canyon slot. 35 54.472N 106 17.960W

Both sides of the canyon are Tschicoma dacite, but the wall on the right (south) is topped by Bandelier Tuff while the wall on the left is bare. When it was first erupted, the Bandelier Tuff ponded against the older dacite to the left, and then the tuff preferentially eroded away at the point of contact to produce this canyon. Erosion continued cutting down into the dacite to expose the interior of the Guaje flow in this slot canyon..

Rendija dacite

The canyon is floored with large clasts of Tshicoma dacite like this one, which is roughly two meters across. Here's a close up photograph:

Close up of
          Tschicoma dacite

There's a quarter at the bottom for scale. This lava would have erupted out of the source vent as a thick sludge full of these plagioclase crystals. In some cases, the lava was a bit more fluid, as with this boulder full of flow bands:

Flow bande
        Tschicoma dacite

Halfway up the canyon wall, there is an extensive exposure of fractured rock.

Block flow
Block and ash flow. Looking north from  35.90621N 106.2983387W

This is probably a block and ash flow, like those we saw around Cerro Balitas earlier in the book. Here is a close look at part of the beds.

Block flow
Block and ash flow. 35.909407N 106.2979157W

There are several cooling cracks visible in the larger clasts here.

The Rendija Canyon Member is the oldest member of the Tschicoma Formation present in any volume around Los Alamos, and this is evident from the topography of the formation, which is clearly more heavily eroded than other areas underlain by Tschicoma Formation. The younger domes and flows really do look like they are draped over the older eroded topography. However, with all formation ages, one must keep in mind that there is inherent uncertainty in the formation age of a few percent, and there is also genuine spread in ages -- most vents erupted more than once, often at intervals of tens of thousands of years.

It is perhaps no surprise that the Tschicoma Mountain Member of the Tschicoma Formation shows a broad age range, since Tschicoma Mountain is the highest point in the Jemez.

Tschicoma Peak
        seen from Thirty Mile Road
Tschicoma Peak seen from Thirty Mile Road west of Espanola. The peak is at right with a prominent snowfield on its south (left) face.

It would have taken repeated eruptions from a single vent to build up so high a peak. The oldest lavas from this vent have been dated to about 5.6 million years, just a little younger than the youngest Rendija Canyon dacite, but the bulk of the mountain was erupted between 3.9 and 3.3 million years ago. The northeast flank of the mountain is a single large flow, the Gallina Mesa Flow, dated to about 3.9 million years. Here's a sample:

Gallina Mesa unit,
          Tschicoma Formation
Gallina Mesa Unit, Tschicoma Mountain Member, Tschicoma Formation

Dacite to the northwest of Tschicoma is notable for the presence of mafic inclusions.

Tschicoma dacite
          with mafic inclusions

Tshicoma dacite with mafic inclusions. 36 01.783N 106 28.132W

This photograph shows two blobs of fine-grained darker rock (the mafic inclusions) surrounded by Tschicoma dacite, with its distinctive white plagioclase feldspar crystals. The mafic inclusions are evidence that the Tschicoma eruptions may have involve mixing of low-silica basalt magma from the mantle with high-silica melted crust. Similar inclusions are found near Pajarito Mountain.

Tschicoma dacite with
          mafic inclusions

Tshicoma dacite with mafic inclusions. 35.8962414N 106.3925109W

This looks almost like country rock entrained in the magma, but this may be an effect of weathering.

The view south of Tschicoma Peak shows Santa Clara Canyon and the north flank of Caballo Peak,

Panorama south of Tschicoma Peak

Tschicoma Highlands south of Tschicoma Peak. 36.0070894N 106.3843033W

Caballo Peak is the ridge left of center. The city of Los Alamos is visible over its shoulder. The deep valley below is Santa Clara Valley. To the right are younger cliffs of Tsherige Member, Bandelier Tuff, and domes of the Toledo Embayment, a semicircular region seemingly carved out of the Tshicoma Highlands by later geologic events.

Further north still are Polvadera Peak and Cerro Pelon. These are prominent on the skyline south of El Alto Mesa.

Tshicoma Highlands from the north

Polvadera Peak and other Tschicoma domes south of El Alto. 36 08.159N 106 20.590W

Polvadera Peak is the prominent peak near the center of the panorama. Cerro Pelon is in the foreground to its right. Like Tschicoma Peak, these domes are around 5 to 3 million years old.

Cerro Pelon is particularly striking on the topographic map, with an obvious summit crater.

          Pelon from the south

Cerro Pelon from the south. 36 06.584N 106 23.633W

Geologists have interpreted the dome on the right as a single flow coming out of the summit crater.

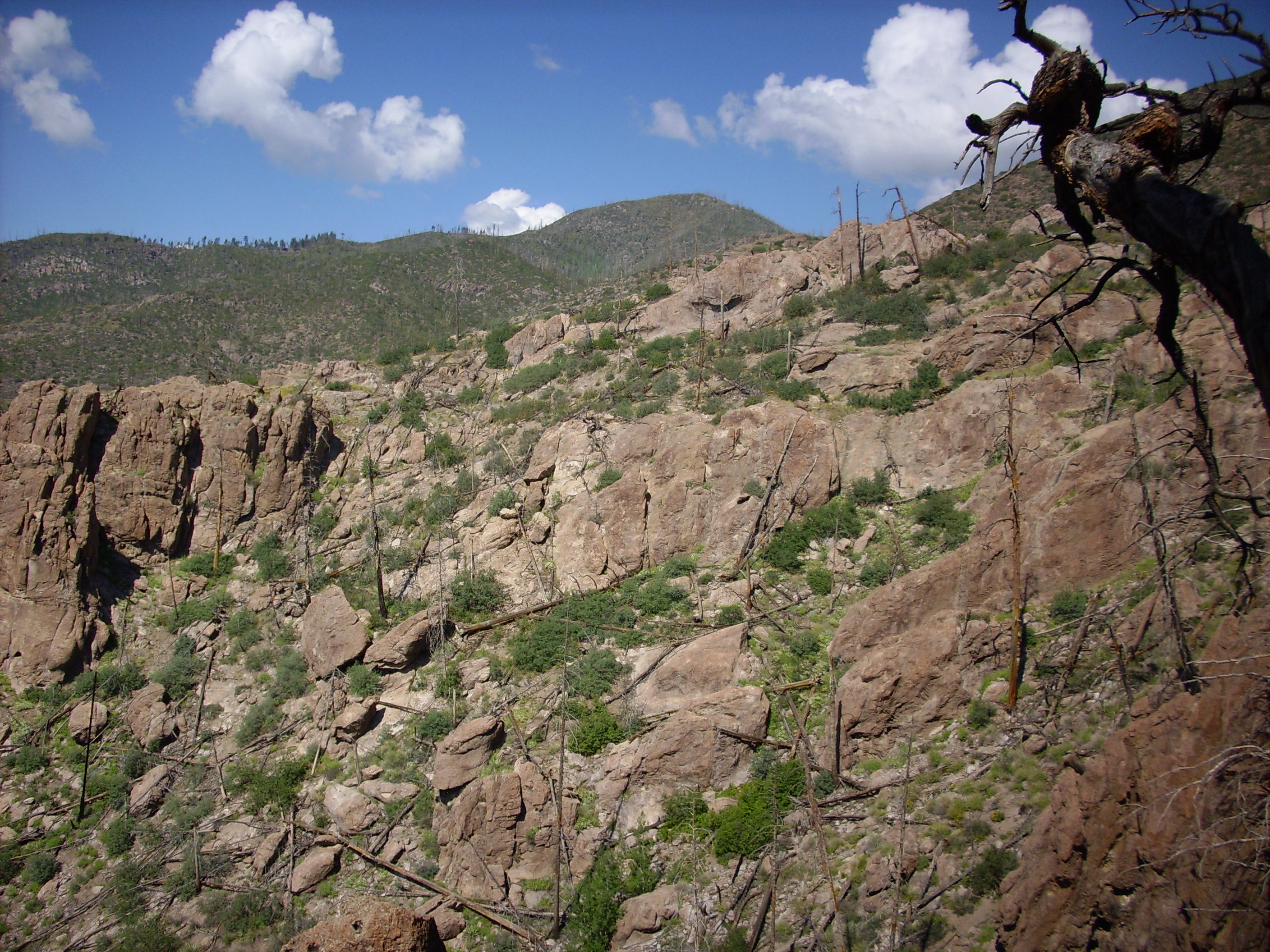

The next vents to open were in the area around Cerro Rubio, where the dacite is between 4.2 and 3.6 million years old.


Cerro Rubio from the west. 35.9315543N 106.4489054W

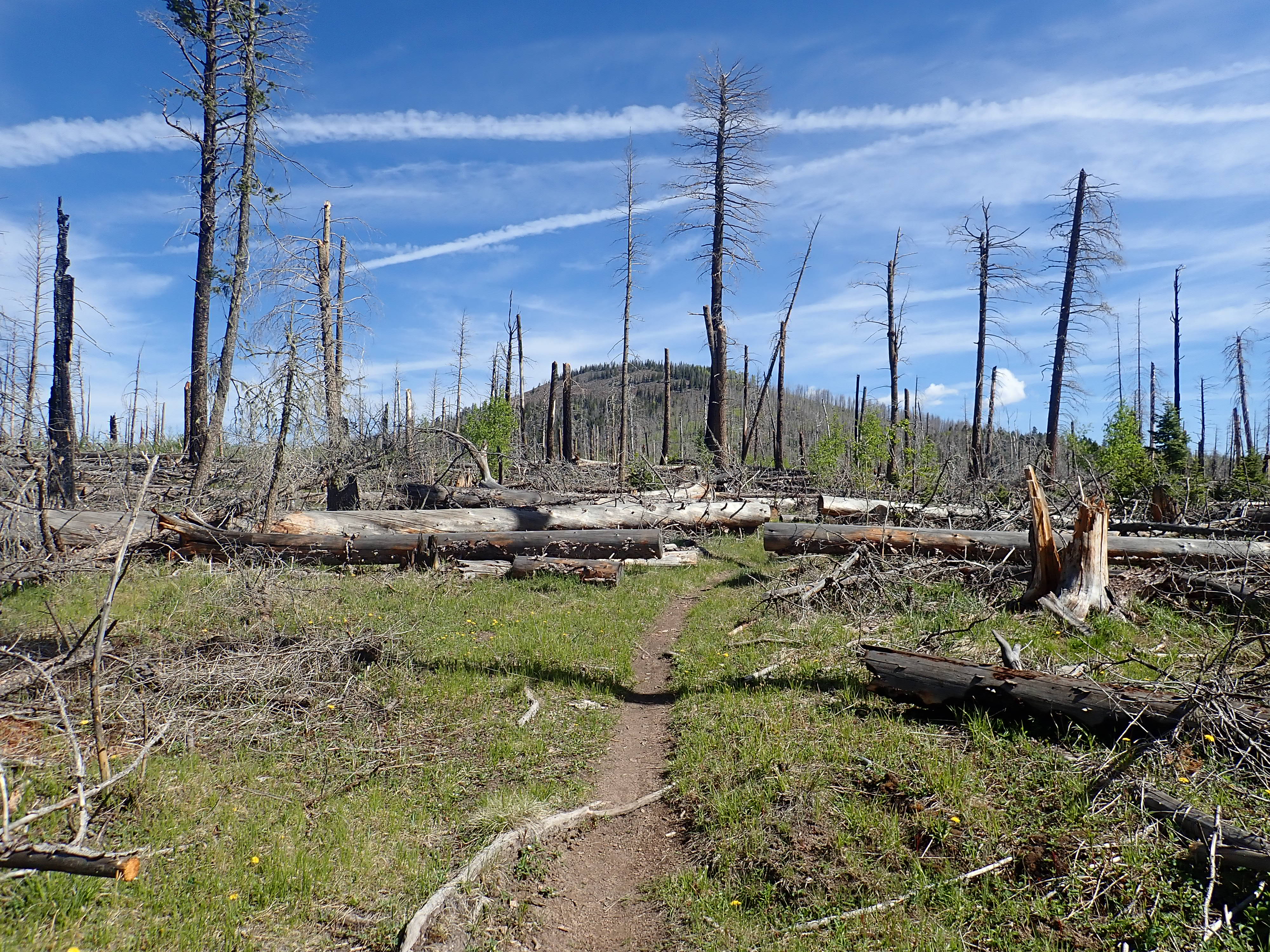

Cerro Rubio is the peak on the skyline just left of center. One can climb the peak itself from the Guaje Trail.


Cerro Rubio from the south 35.930875,-106.398686W

Quemazon Flow dacite

Dacite of Cerro Rubio.  35.942267N 106.401427W

Another pair of vents opened around 3.7 million years ago.


Sawyer Dome. Looking west from near 35 50.051N 106 24.425W

Sawyer Dome has been dated to 3.6 to 3.4 million years old, and some of its flows are overlain by the massive Cerro Grande Member, which has been dated to between 3.8 and 2.9 million years old. The Cerro Grande dacite is particularly noted for containing visible crystals of hornblende (a hornblende dacite). This is well exposed in a road cut along State Road 4:

Hornblende dacite

Hornblende dacite

Much of the hornblende in this sample appears under the loupe to have oxidized to hematite, but there are a few black crystals of hornblende remaining.

A final voluminous pulse of activity took place around 3 million years ago. One major vent formed Pajarito Mountain.

Pajarito Mountain

Pajarito Mountain viewed from the Pajarito Environmental Education Center. 35 53.100N 106 18.509W

Pajarito Mountain

Pajarito Mountain viewed from the north. 35.897787N 106.390814W
        Mountain dacite

Pajarito Mountain dacite outcrop. 35.900745N 106.389462W

Pajarito Mountain dacite

This is probably the most distinctive dacite I've sampled from the Tschicoma Formation. The feldspar phenocrysts are relatively small and numerous, and the ground mass is an almost bluish gray. The rock is also tough as nails, judging from what it took for me to break off a sample.

The north slopes of Pajarito Mountain are occupied by Pajarito Mountain Ski Area, with 44 trails. The ski area is typically open from mid-November to mid-March.

At almost the same time, another major vent opened to produce Caballo Mountain.

Caballo and Tschicoma Mountains

Caballo Mountain and Tschicoma Mountain. Looking west from  35 51.730N 106 13.004W

Caballo Mountain is relatively inaccessible and likely to remain so, though in principle one could hike in and out in a long day on one of the spurs of the Mitchell Trail. It could also be approached from Guaje Trail.

Caballo Mountain and Guaje Canyon.

Caballo Mountain and upper Guaje Canyon.  35.938813N 106.3886205W

Finally, a small vent opened near the head of Quemazon Canyon about 2.9 million years ago. The resulting flow can be reached from the Guaje Trail for a sample.

Quemazon Flow dacite

Dacite of the Quemazon flow.  35.927162N 106.394271W

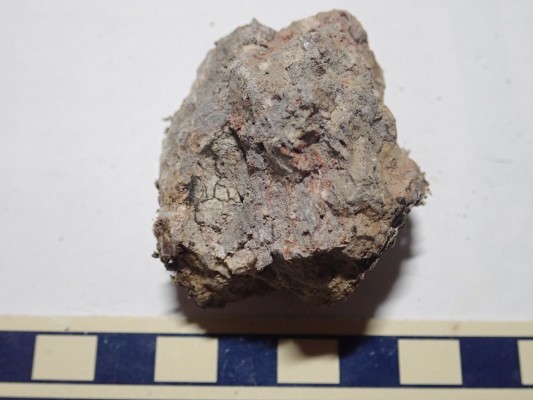

The sample is somewhat weathered. The sold rock was virtually impossible to break with a geologist's hammer.

There were likely additional vents further west that foundered into the Toledo caldera 1.6 million years ago. Just how far west the Tschicoma Formation eruptive centers extended is not known. However, there is a prominent Tshicoma Formation flow in the west rim of the caldera, located just above Forest Road 376.

Tschicoma Formation in caldera west rim

Tshicoma Formation flow in caldera west rim. 35 53.165N 106 40.114W

This consists of a massive flow body lying on a bed of basal breccia.

Massive core of Tschicoma flow in caldera west rim

Massive core of Tschicoma flow in caldera west rim

Basal breccia of Tshicoma flow

Basal breccia of Tshicoma flow in caldera west rim

The breccia is quite solid, in spite of its appearance. It represents fragments broken off the face of the very viscous dacite flow as it advanced, which formed a carpet of broken rock beneath the more massive core of the flow. Similar basal breccia are visible in the multiple Tschicoma flows exposed in upper Los Alamos Canyon.

The process of early solidified lava being broken up and incorporated into the remaining liquid lava to form breccia of this kind is called autobrecciation. The breccia and the massive core can be quite different in appearance, as is the case here. From the breccia at the base of the flow:

Tschicoma flow breccia

From the massive core of the flow:

Sample from massive
          core of Tschicoma flow

The latter is quite striking, isn’t it? The larger white crystals are feldspar, while the smaller include quartz, and augite and biotite crystals are prominent under the loupe.

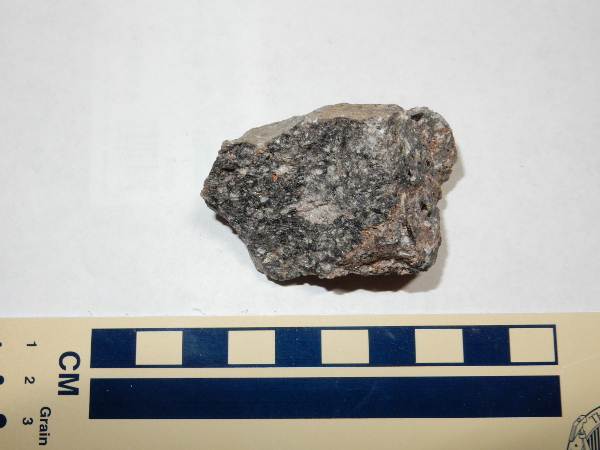

The base sample has a glassy appearance under the loupe, suggesting more rapid cooling consistent with this being formed on the face of the flow. There are also hints of microscopic glass bubbles. However, the samples likely differ only in texture and weathering, not in composition.

More than meets the eye

The youngest flows of the Tschicoma Formation erupted 2.5 million years ago. However, these are exposed nowhere at the surface. They are found instead in well cuttings from Los Alamos Canyon and from Los Alamos National Laboratory wells further south. These have been dubbed the "northern dacites" and "southern dacites", respectively, and they are distinct from other Tschicoma flows. These likely erupted from vents in the Diamond Drive Graben.

The Diamond Drive Graben is a shallow graben in which sits much of the western part of the city of Los Alamos. It gets its name because the axis of the graben lies along Diamond Drive, one of the main roads in Los Alamos. Since the Rio Grande Rift itself is a large graben, the Diamond Drive Graben is a graben within a graben. One school of thought holds that the Diamond Drive Graben was formed partially by subsidence into the magma chamber from which the Tschicoma Formation was erupted.

Another school of thought holds that the Diamond Drive Graben is an example of a listric graben, formed along the hanging wall of a major listric fault. A listric fault is a fault whose dip decreases with depth, so that the fault has a curved shape. This diagram shows a listric fault with an associated listric graben:

Diagram of listric graben

According to this interpretation, the Pajarito Fault would be the large listric fault underlying the Diamond Drive Graben. It is possible that both mechanisms contributed to the formation of the Diamond Drive Graben.

The western horst of the Diamond Drive Graben is then the foothills of the Sierra de los Valles west of Los Alamos. We saw part of the fault escarpment earlier.

Pajarito Escarpment north of
          hairpin turn
Pajarito Escarpment north of hairpin at 35 49.991N 106 21.804W

The escarpment runs along the eastern foot of the Sierra de los Valles until it joins the Santa Clara Canyon Fault north of Los Alamos.

Faulting and deformation associated with the Diamond Drive Graben extends possibly as far east as the Rio Grande, but the eastern boundary of the graben is usually taken to be the prominent escarpment associated with the Rendija Canyon Fault. The fault escarpment is most striking just west of Los Alamos Middle School and to the east of Guaje Pines Cemetary.

Fault escarpment
Rendija Fault escarpment. Looking northeast from 35 54.102N 106 17.907W

Both the east and west horsts expose a large section of Tsherige Member, Bandelier Tuff. However, the rock on the west side is much more densely welded (being closer to the source vent), has weathered differently (being in a wetter zone), and so is much darker brown than the light pink tuff you see here. It's a horst of a different color.

The fault continues south and is well exposed in Pueblo Canyon.

Fault escarpment
Rendija Fault escarpment. Looking east from 35 53.327N 106 18.282W

The tall hill on the left is the fault escarpment. This becomes less prominent south of the canyon but is still visible.

Rendija Fault
          trace in canyon wall
Rendija Fault trace Looking south from 35.8890881N 106.3014552W

Further south, the fault splays in the area around Ashley Pond and to the west. Ashley Pond is largely artificial now, but it was a small natural pond in 1943 and an example of a sag pond, formed in a depression formed between two fault splays.

North of Los Alamos, some of the displacement along the Rendija Canyon Fault is taken up by the Guaje Fault to the east. This fault forms a low escarpment through the Barranca Mesa subdivision just west of the elementary school, but it is more obvious further north, on the west flank of Guaje Mountain.

Fault escarpment
          west of Guaje Mountain
Guaje Mountain. Looking north from 35 54.828N 106 16.994W

The fault runs along the west side of the mountain and through the notch on the left in the photograph.  The flat western face of the mountain is the fault escarpment.

          escarpment west of Guaje Mountain
West face of Guaje Mountain. Looking east from 35.9217876N 106.2839297W

Further north the fault seems to displace Guaje Canyon at the Guaje Narrows, suggesting that there is a right lateral component to the displacement along the fault.

          escarpment at Guaje Narrows
West face of Guaje Mountain. Looking northeast from 35.9260376N 106.2821028W

The dry stream bed turns south along the face of the ridge, almost exactly along the fault trace, before turning back east through the narrows. This would make the Guaje Fault nearly unique among the faults of the Pajarito Plateau in having a significant lateral slip. However, a more likely interpretation is that the stream has changed course to preferentially erode through the shattered rock of the fault zone.

The Diamond Drive Graben is remarkably deep, with an estimated 1500 meters (5000') of sediments. Its faults appear to line up with post-Lobato Formation faulting on Mesa Alta, suggesting the original graben may extend far to the north.

The Puye Formation

Digital relief map of Puye Formation exposures in the
      Jemez Mountains
Relief map of the Jemez with Puye Formation outcroppings highlighted in red and Totavi Lentil in yellow.

High-silica volcanism is rubbly.

Because high-silica magma is both highly viscous and relatively cool, it tends to solidify quickly on contact with air. This is true to some extent of all lavas, of course, but a hot, low-viscosity basaltic lava flow can travel for miles under a thin crust of solid rock, through which the hot lava beneath is visible through numerous cracks. High-silica lava flows only with the greatest difficulty, and forms a very thick crust that breaks into fairly large boulders with very little exposure of the underlying lava. As a result, a high-silica flow resembles nothing so much as a creeping hill of hot boulders. This is described as block lava by geologists, by contrast with pahoehoe and aa, which are generally seen only in low-silica flows such as basalt.

When the flow fully solidifies, it is likely to consist of a core of fairly solid rock blanketed with much looser boulders and other debris. The loose blanket of debris is highly susceptible to erosion and can amount to a significant fraction of the total mass of the dome. Erosion quickly wears away the outer blanket, leaving a denuded dacite dome of solid rock surrounded by an apron of dacite clasts.

This apron does not normally last long, geologically speaking; it is subject to further erosion that destroys the original clasts and reduces the apron to fine sediments. However, just as dead organisms sometimes are preserved by unusual geological environments to produce fossils, so volcanic aprons sometimes are preserved by unusual geological environments to produce beds of very coarse conglomerate. These are known as fanglomerates because they form from alluvial fans that make up the apron around the volcanic center. We'll learn more about alluvial fans later in the book.

The Diamond Drive Graben formed a natural trap for dacitic rubble from the Tschicoma Formation, and the preserved rubble is known as the Puye Formation. This is between about 5 and 2 million years in age, based on radiometric dating of an ash flow tuff within the formation at 2.53 million years old, and on the fact that no Peralta Tuff tephra (age 6.8 million years) is found in the formation. The Puye Formation is included in the upper Santa Fe Group, since it is sediments that filled part of the Rift, and it was deposited when the ancestral Rio Grande was already present. Remnants of dacitic rubble aprons are found elsewhere across the Jemez, but the remnants are small isolated outcrops everywhere but east of the Jemez.

The Puye Formation is a highly variable formation. In addition to fanglomerate beds, it includes tephra beds (volcanic ash or pumice), asjh flow tuffs, and mud flows. These not only form distinct layers, but vary considerably from place to place. Nevertheless, the formation as a whole has a distinctive ashen gray color that contrast sharply with the pink or tan of the underlying Chamita Formation and the light pink of the overlying Bandelier Tuff or very dark gray of the Cerros del Rio Basalt.

In some locations close to the Rio Grande, the Puye Formation fanglomerate is underlain by a very coarse conglomerate of well rounded clasts, the Totavi Lentil. This has generally been regarded as a member of the Puye Formation, though its origin is quite different. It is old river channel gravel associated with the ancestral Rio Grande, and the clasts are mostly Precambrian rock. Because of its different origin and distinctive character, some recent papers have raised the Totavi Lentil to formation status as the Totavi Formation. I will include it with the Puye Formation here.

I'll begin my description of the Puye Formation at its furthest southern exposures, in White Rock Canyon, and work north. The Puye Formation is found only in isolated locations south of the main highway to Los Alamos, SR 502, suggesting that this was already higher terrain at the time of deposition. One such exposure is located at the mouth of Ancho Canyon, where it fills a paleocanyon in the underlying Vallito Member of the Chamita Formation.

Puye Formation
Puye Formation in lower Ancho Canyon. Looking west from 35.774805N 106.2242357W

Similar exposures are scattered along the Rio Grande to the south, but are almost inaccessible at present. These are likely some of the oldest Puye beds, filling channels eroded in the top of the Santa Fe Group . At the mouth of Ancho Canyon, the lowest Puye Formation beds actually lie beneath the Totavi Lentil, which in most locations is the lowermost unit of the Puye Formation. As at other locations, the Totavi Lentil takes the form of beds of polished cobbles.

Totavi Lentil in lower Ancho Canyon. Looking southwest from 35.773777N 106.2233857W

The Totavi Lentil is just below center in the photograph, overlain by basalt colluvium and solid basalt flows.

There is a more accessible exposure along the Blue Dot Trail in White Rock Canyon. Here a small intermittent stream has eroded through the landslide deposits covering most of the canyon walls.

Mud bank
Puye Formation mud flow? 35 49.227N 106 10.977W

This outcropping is a very muddy sandstone that is moderately well indurated. This is likely an example of a mud flow.

Mud flows and lahars

A mud flow occurs when soil or other sediments rich in clay become saturated with water, the sediments lose cohesion, and the semi-liquid mass begin to move downhill under the force of gravity. To be classified as a mud flow, the flow must contain at least 50% clasts of clay or silt size and not more than 30% water. If the water content exceeds 30%, the flow becomes a hyperconcentrated flow, while flows containing more than 50% clasts of sand size or larger are debris flows. A slump does not lose cohesion, so that much of the structure of the rock and sediments remains intact, while a fall involves relatively small quantities of material moving relatively short distances. All of these except floods are examples of mass wasting, where rock and sediment moves downhill under the force of gravity. I'll have more to say about other forms of mass wasting later in the book.

Mud flows are most common in semiarid climates, where infrequent but heavy rainfall can quickly saturate the ground. However, they can occur in almost any climate. They are more common on the steep slopes of mountainous terrain, but can occur on more gently sloping ground that is especially rich in clay and absorbs a greater quantity of water. Mud flows associated with volcanic activity are especially notable and are known as lahars. A lahar can form from recently erupted ash that is exposed to rainfall or to runoff from glaciers or snowfields melted by volcanic activity. Lahars are thus typically rich in volcanic ash and can harden to rocklike consistency very quickly after coming to rest.

The eruptions that formed the Tschicoma Formation likely produced quite a lot of ash, and many of the beds in the Puye Formation, particularly close to the Sierra de los Valles, are preserved lahars. The bed shown here is at the fringe of the Puye Formation and probably should be interpreted as a conventional mud flow,  formed from sediments that have already been weathered and possibly repeatedly reworked during their long journey from the foothills of the mountains. Mud flows in the Puye Formation are relatively localized, with a single flow rarely exceeding two or three hundred meters in width.

A short distance further down the Blue Dot Trail, one encounters very large rounded clasts.

Large rounded

        channel gravels
Totavi paleoriver bed. 35 49.215N 106 10.962W

These include quite a lot of quartzite and granitoid clasts, probably of Precambrian age. Though it does not show in this photograph, the clasts in the trail cutting show some signs of imbrication. In other words, the clasts overlap something like the shingles on a roof. This is an indication that the clasts were laid down in a strong river current, and indicates that this is an outcropping of the Totavi Lentil.

Further north, below the old Buckman Road north of Overlook Park in White Rock and beneath a layer of dark basalt, thicker exposures of Puye Formation are visible.

Puye Formation below
          old Buckman Road
Puye Formation below old Buckman Road. 35.832N 106.181W

Still further north, there are excellent exposures of Puye Formation in lower Pueblo Canyon along SR 502. The best are in the area west and north of Totavi.

Puye Formation near

Here is a close up shot.

Close up of Puye
Puye Formation

The thick gravel beds at center are the type section for the Totavi Lentil, and were once quarried nearby for road gravel for the Los Alamos area. They are composed of well-rounded, moderately well-sorted clasts showing they were part of a river bed. The gravel beds are overlain by a thick bed of muddy clay and silt, relatively well cemented, that is probably a lahar.

Much of the Puye Formation consists of beds made up mostly of large clasts rather than clay and silt. These are classified as debris flows.

Puye Formation
        close up
Puye Formation in lower Pueblo Canyon. 35 52.276N 106 11.176W

The boulder in the center of this photograph is a little larger than a basketball. The layer it is embedded in may be a single debris flow.  It is not unusual for larger clasts in a debris flow to work their way to the surface, as seems to be the case with the large boulder in the photograph, which lies towards the top of the layer in which it is embedded. As we will see shortly, some of the debris flows of the Puye Formation consist largely of very large clasts.

This also illustrates how debris flows are distinguished from hyperconcentrated flows in the geologic record. In a debris flow, large clasts remain suspended indefinitely or even work their way to the top, so a debris flow tends to coarsen upwards. A hyperconcentrated flow is not quite rich enough in debris for this to happen. Large clasts move towards the bottom, so that a hyperconcentrated flow tends to fine upwards. Hyperconcentrated flows also tend to show sedimentary structures associated with water escaping from the top of the flow. Debris flows generally do not.

The next photograph illustrates of the power of flash floods during the monsoon season when the watershed is laid bare by fire and channels into a narrow canyon:


"Important safety tip. Thanks, Egon." 35.918N 106.234W

A flash flood destroyed this concrete culvert in Guaje Canyon, leaving behind some very large clasts. Such floods resemble debris flows, but with a higher water content, so that the moving water rather than the weight of the clasts themselves is the principle moving force. Flash floods often carry enough sediment, between 5% and 70%, to be classified as a hyperconcentrated flow. Thus, as the content of sediments increases, a watery flow goes from ordinary fluvial flow with less than 5% sediments, to a hyperconcentrated flow with 5% to 70% sediments, to a mudflow or debris flow with more than 70% sediments.

This photograph is of beds of the Totavi Lentil near the base of the type section.

Totavi Lentil
Totavi Lentil. 35 52.293N 106 11.155W

You can see the rounded quartize clasts towards the bottom of the roadcut here. Another exposure is found further down the canyon.

Totavi Lentil
Totavi Lentil. 35 52.522N 106 10.700W

Here the well-polished quartzite clasts characteristic of the Totavi Lentil are underlain by a thin bed of what appear to be basalt boulders, likely from the Lobato Formation. Under these are reddish, poorly consolidated sandstones of the Chamita Formation, Santa Fe Group. The basalt boulders appear to fill a shallow channel eroded in the top of the Chamita Formation and may represent an early debris flow. The top of the Chamita Formation in this area is estimated at around 8.5 million years in age; there is thus a gap in the geologic record of about 3.5 million years between these beds and the overlying 5-million-year-old Puye Formation beds.

At the mouth of Pueblo Canyon, west of the turnoff to Espanola, the Puye Formation becomes a thick cliff-forming unit.

Puye cliffs
Puye Formation at mouth of Pueblo Canyon. 35 53.030N 106 10.040W

Mud flows of the Puye Formation tend to form vertical cliffs like those seen here. North of the road from Totavi to Espanola, the Puye Formation forms the upper slopes of Battleship Mountain.

Battleship Mountain. 35 55.374N 106 08.843W

The lower, pinkish part of the mesa is Chamita Formation, Santa Fe Group. The upper portion, separated from the lower portion by a light ash-rich bed, is Puye Formation. There is a small cap of the Tshirege Member, Bandelier Tuff, at the very top of the mountain.

A north-trending fault lies roughly at the base of the west side of the mountain (far side in this photograph) with the west side thrown down. The presence of the fault is clear from this photograph taken at high zoom from a point well to the east.

Battleship Mountain showing fault displacement. Looking east from  35 52.933N 106 03.8704W

Battleship Mountain is right of center, visible against the Pajarito Plateau and with Tschicoma Peak in the background. If you click to see the full resolution image, you will see that the lowermost light bed of the Puye Formation is displaced upwards in Battleship Mountain relative to the Puye Formation in the hills behind Battleship Mountain. This fault is part of the easternmost side of the Diamond Drive Graben.

Further west, there are excellent exposures of the Puye Formation in Rendija Canyon.


In this photograph, you see various layers of clay, sand, and boulders from mud flows and debris flows. The boulder layer has individual clasts larger than a man's head.

The Puye Formation in this area includes an ash flow tuff bed which has a radiometric age of 2.53 million years, corresponding roughly to the peak of dacitic volcanism to the west.

Here is a sample from one of the finer-grained beds near this location.

Puye Formation

This is a moderately sorted sandstone composed almost entirely of bits of volcanic rock, with just a few bits of quartz and feldspar. There is relatively little matrix between the grains. Such a rock is classified as a lithic arenite, and lithic arenites are almost unique to regions of young volcanism. The rock is only moderately well-consolidated; you can scratch off a few grains with your fingers (it is friable.) It is an excellent example of a tephra bed within the Puye Formation; in this case, an ash bed (because the grains are less than 2mm in size.)

There are some remarkable rock features in the Puye:

Hoodoo. 35 54.661N 106 15.347W

Hoodoos. 35 54.629N 106 15.282W  Public domain

These kinds of rock structures are known as hoodoos and found here and there throughout the area. The large boulder on top is thought to have compacted the rocks underneath while simultaneously protecting them from erosion, allowing a surprisingly solid pillar to form. The existence of such formations in this area has been regarded as proof of low seismic risk, since these hoodoos are at least several thousand years old and have not been toppled by any earthquake in that time, but geologists now believe they are capable of withstanding quite powerful earthquake motion.

The Puye Formation is also exposed in the walls of Guaje Canyon, such as along the road cut here.


The next photograph shows how large some of the boulders can be.

Puye Formation in Guaje Canyon. 35 54.921N 106 13.601W

My shadow provides scale. Further down the cliff, there's a boulder  three meters in diameter.

The beds become very thick further up Guaje Canyon, close to the source of the debris.

Upper Guaje Canyon
Puye Formation in Guaje Canyon. 35 54.921N 106 13.601W

Still further north, the Puye Formation is exposed along 31 Mile Road west of Espanola.

Puye Formation in
        road cut on 31 Mile Road
Puye Formation in road cut. 36 00.358N 106 09.610W

If this reminds you of the Cochiti Formation in the last chapter, it's because this rock formed in a similar environment and from similar source rock as the Cochiti Formation. Similar environments produce similar rocks. However, the Cochiti Formation is, on average, significantly older than the Puye Formation, and it contains less gray ash in the ground mass and more tan sand, silt, and clay.

At one point along the road, there is a prominent contact between the Puye Formation and the underlying Chamita Formation of the Santa Fe Group.

Contact between Puye
        Formation and underlying Chamita Formation, Santa Fe Group
Contact between Puye and Chamita Formations. 36 00.726N 106 08.383W

The Chamita Formation has the distinctive pink color of much of the Santa Fe Group. This contrasts with the distinctive grey color of the Puye Formation, which contains a large amount of volcanic ash. Here the extremely clean contact shows  that the debris flow scoured clean the surface of the Chamita Formation.

Conditions along the east side of the Jemez were unusually good for trapping debris flows and lahars off the Tschicoma Highlands, but isolated deposits mapped as Puye Formation are also found in the northern Jemez. Some of these are found on the northwestern flank of the Tschicoma Highlands along Gallina Creek.

Puye Formation in
          the Vallecitos area
Puye Formation. Near 36.0347683N 106.3135258W

On El Alto, these take the form of long ridges that are likely erosional remants of more extensive beds.

Puye Formation on El Alto

Puye Formation on El Alto. 36 07.355N 106 21.815W

Note that I have not left the roadway for a better view. This area is private land belonging to Pueblo de Abiquiu and visitors are asked to stay on the road.

The El Rechuelos Rhyolite

Digital relief map of El Rechuelos Rhyolite exposures
        in the Jemez Mountains
Relief map of the Jemez with El Rechuelos Rhyolite outcroppings highlighted in red

The Tschicoma Highlands include a number of rhyolite domes erupted onto the Tschicoma Formation, and these have been assigned to the El Rechuelos Rhyolite. However, they are not necessarily a single petrological group, and they may not be distinct from surrounding formations.

The southwestern domes of the El Rechuelos Rhyolite have been dated at 7.5 million and 5.8 million years old. The former correlates with the Bearhead Rhyolite and many geologists believe this dome should be assigned to that formation. The second dome, and a pumice ring northeast of the other El Rechuelos domes, may be unusually silicic exposures of Tschicoma Formation. The remaining domes are about 2 million years old and have the strongest claim to being a distinct formation, with a chemistry that suggests they may have formed by differentiation of a primitive basalt, such as the El Alto basalt that I'll discuss in the next chapter.

The northern of the domes northwest of Polvadera Peak can be reached by a pleasant hike from the forest road south of Cerro Pelon.

El Rechuelos dome

El Rechuelos dome. 36 04.888N 106 25.149W

The dome is steep but one can hike to the summit area with moderate effort. Here there are numerous clasts of the rhyolite.

El Rechuelos near

Near the summit of El Rechuelos dome. 36 04.778N 106 25.392W

This one displays a barklike texture that probably represents a cooling surface.

El Rechuelos Rhyolite with bark texture

Sample of El
          Rechuelos Rhyolite

The geologic map describes this as a pumiceous rhyolite, and it does have a different texture from the other rhyolite samples I’ve seen. Under a powerful loupe, it looks almost crystalline, or perhaps like a mass of tiny glass beads compressed together. I suspect the latter is actually quite close to the truth.

The view from the summit is exhilarating.

Panorama from El Rechuelos north dome

View from summit of El Rechuelos north dome. 36 04.664N 106 25.411W

At left, the near orange mesas are Bandelier Tuff. Beyond, on the skyline, is La Grulla Plateau. The cluster of hills are dacite domes of the Four Hills complex, sitting on the basalt and andesite making up the plateau. El Alto and La Grulla Plateau channeled the pyroclastic flows of the Valles event, 1.2 million years ago, into the low ground between to form the Bandelier Tuff mesas. Cerro Pedernal, beloved of artist Georgia O’Keeffe, appears near the center of the panorama. The far skyline to the right is underlain by Mesozoic beds of the Colorado Plateau.

The El Rechuelos domes are rich in obsidian.

El Rechuelos obsidian

El Rechuelos obsidian. 36 06.112N 106 25.572W

Notice that this is relatively light-colored and translucent obsidian. Most of the bits of obsidian I saw in the area were like this, and I assume this is characteristic of El Rechuelos obsidian. There is a fair amount of obsidian on El Alto, and it is believed that it was scattered here by early man. The only obvious natural source is the El Rechuelos domes, and it’s hard to see how erosion could scatter the obsidian so far from the natural drainages from these exposures. El Rechuelos obsidian seems to have been particularly suited for toolmaking, because it is free of phenocrysts or other inclusions.

Dacitic volcanism in the Jemez began petering out about 3 million years ago. At about the same time, basalt began to be erupted around the periphery of the Jemez where it overlaps the Rio Grande Rift. This was a prelude to the most cataclysmic series of events in the Jemez of which we have sure knowledge.

Next page: Basaltic volcanism resumes

Copyright © 2015 Kent G. Budge. All rights reserved.
